SparkFun RedBoard with Cable

CHF 48.70*

Prices incl. VAT plus shipping costs

Currently not available. Please contact our service hotline at the bottom of this page if you have any questions.

Product number: ARD-RED

Product information "SparkFun RedBoard with Cable"

Description

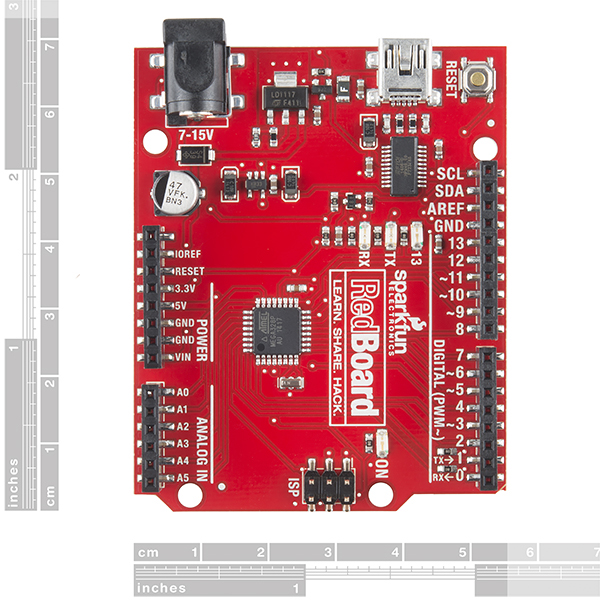

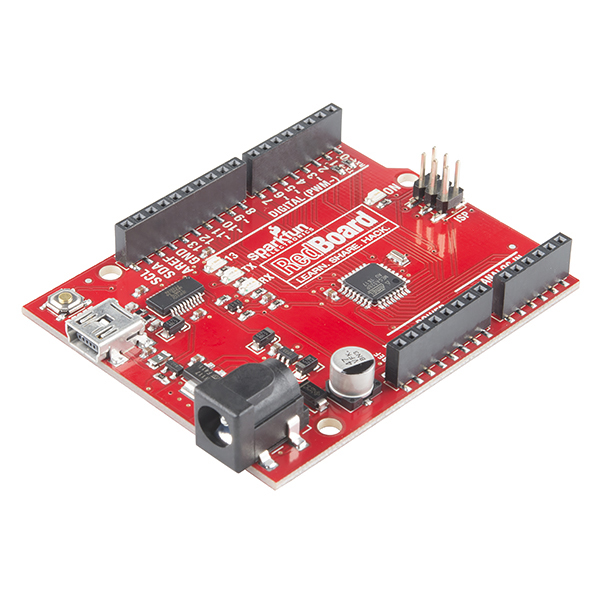

The SparkFun RedBoard is an Arduino™ UNO-compatible board, which is perfect for use with the Vernier Arduino Interface Shield. A USB Mini-B cable is included. The SparkFun RedBoard is an Arduino-compatible board that is perfect for use with the Vernier Arduino Interface Shield. It is a surface-mount board, which is pin-for-pin compatible with a R3 3 Arduino layout. The key difference between the RedBoard and most Arduino boards is that it uses a mini-B USB connector instead of a full-size type-B USB connector.

The RedBoard operating voltage is 5 volts, which is required for use with most Vernier sensors. You can power the RedBoard either with the USB connector (included) or with a 7-15 V barrel jack power supply (not included).

To use Vernier sensors with the SparkFun Redboard, you will need the Vernier Arduino Interface Shield. See our full guide on how to use Vernier sensors with Arduino »

Specifications

Dimensions: 2.7 x 2.1″ (68.58 x 53.34mm)
USB-to-Serial Chip: FTDI FT232RL
Main Processor: ATmega328
Flash Memory: 32kB
Clock Speed: 16MHz
Operating Voltage: 5 volts
Digital I/O Pins: 14 (6 PWM outputs)
Analog Inputs: 6
Button: Reset
USB Connector: USB Mini-B cable (included)
Barrel jack power connector: 5 mm, with 2.1 mm center pole (center pole +, 7 to 15 V supply)

Vernier Arduino Interface Shield

2 analog sensor ports (BTA sockets)
2 digital sensor ports (BTD sockets)
Reset button
General-purpose button
Indicator LED
Includes a multiplexer to allow auto-ID to work on both channels (both analog and digital)

Supported Microcontrollers

SparkFun Arduino RedBoard
Arduino UNO
Arduino Leonardo
Intel Galileo

Bildungsstufe:	Diploma/High School, Diploma/ Vocational/ Uni
DataLogger Schnittstellen:	Arduino
Fach:	Robotics/ Microcontrollers, informatics, physics
Schnittstelle:	USB
